Description

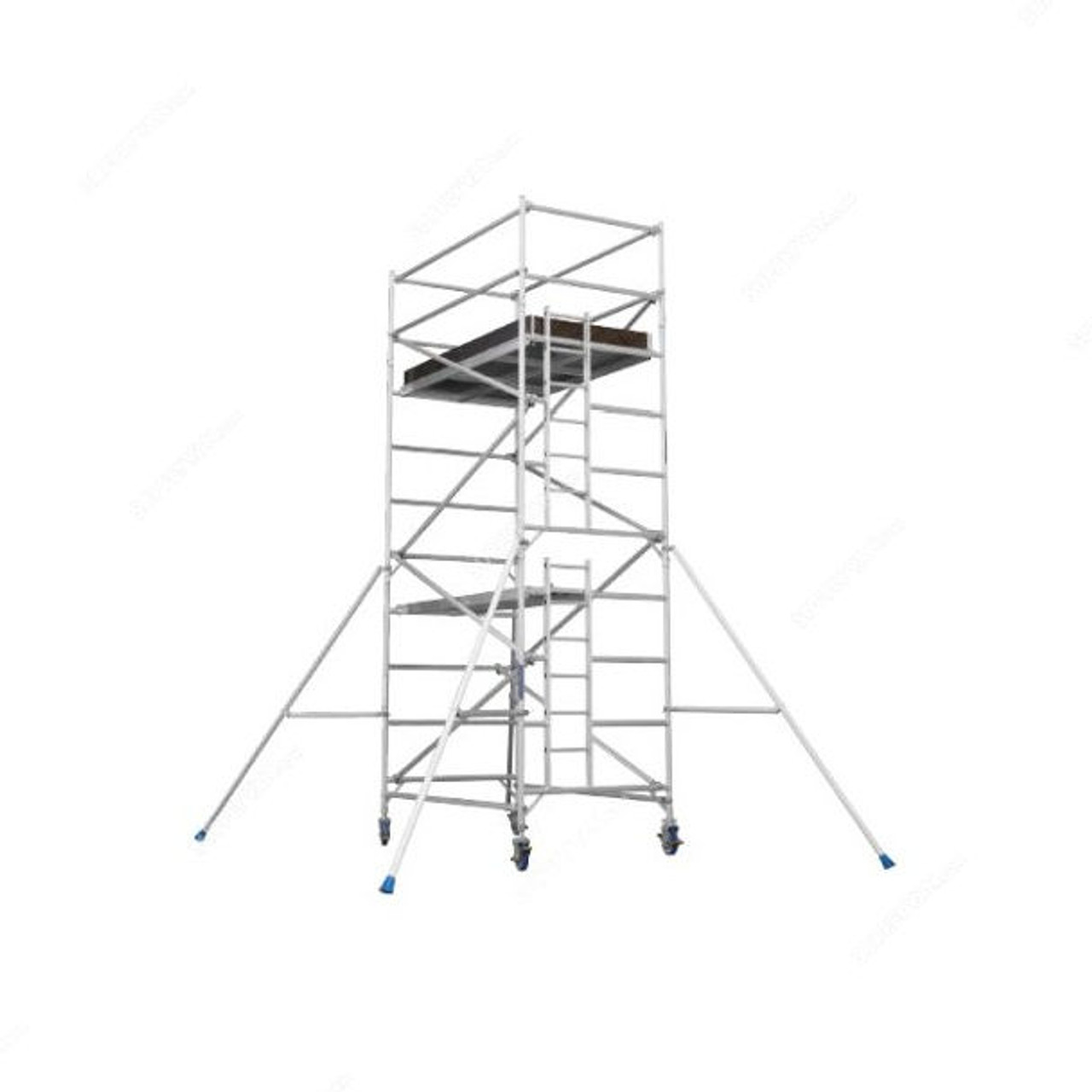

Wide Mobile Aluminium Scaffolding Tower – Stable, Safe, and Highly Mobile Access Solution
Orgean Wide Mobile Aluminium Scaffolding Tower is an excellent choice for professionals requiring a robust, mobile platform for elevated work across construction, industrial, and maintenance sectors in the UAE. Designed with precision, this scaffolding system combines high-grade aluminium with thoughtful engineering to ensure maximum stability and safety at heights up to 17 meters.
Furthermore, the tower features a wide 1.4-meter base that significantly enhances balance, reducing the risk of tipping during use. In addition, its twin platform design provides spacious work areas for greater comfort and efficiency. Equipped with dual-lock caster wheels, the scaffold moves effortlessly across different surfaces while maintaining a secure hold when stationary.
Moreover, the built-in vertical ladder allows for quick and safe access between levels, streamlining workflow and reducing downtime. Because of these features, the AWMS series is widely trusted by contractors, engineers, and facility managers throughout Abu Dhabi, Dubai, and Sharjah.
Key Advantages
- 225 kg load capacity per platform and 750 kg total tower load
- Wide base for superior stability in demanding environments
- Integrated ladder system for safe, convenient access
- Dual brake caster wheels for smooth mobility and secure positioning
- Lightweight, rust-resistant aluminium construction designed for longevity
- Compatible with working heights up to 17 meters
- Fully compliant with regional scaffolding safety standards
Therefore, if you need a scaffolding tower that combines safety, durability, and ease of movement, the Wide Mobile Aluminium Scaffolding Tower by Orgean is the ideal solution. Whether you are working on construction sites, industrial maintenance, or large scale facility projects, this scaffolding system delivers dependable performance every time.
Technical Specifications of Wide Mobile Aluminium Scaffold Tower
| Specification | Details |
|---|---|
| Material | Aluminium 6061 T6 |
| Frame Finish | Chrome Plated |
| Base Width | 1.40 m |
| Base Length | 2.50 m |
| Platform Load Capacity | 225 kg |
| Total Tower Load Capacity | 750 kg |
| Maximum Platform Height | 15.0 m |
| Maximum Working Height | 17.0 m |
Tower Heights – Safe Working Levels
| Tower Code | Tower Height (m) | Platform Height (m) | Working Height (m) |
|---|---|---|---|
| AWMS 2 | 2.0 | 1.0 | 3.0 |
| AWMS 3 | 3.0 | 2.0 | 4.0 |
| AWMS 4 | 4.0 | 3.0 | 5.0 |
| AWMS 5 | 5.0 | 4.0 | 6.0 |
| AWMS 6 | 6.0 | 5.0 | 7.0 |
| AWMS 7 | 7.0 | 6.0 | 8.0 |
| AWMS 8 | 8.0 | 7.0 | 9.0 |
| AWMS 9 | 9.0 | 8.0 | 10.0 |
| AWMS 10 | 10.0 | 9.0 | 11.0 |
| AWMS 11 | 11.0 | 10.0 | 12.0 |
| AWMS 12 | 12.0 | 11.0 | 13.0 |
| AWMS 13 | 13.0 | 12.0 | 14.0 |
| AWMS 14 | 14.0 | 13.0 | 15.0 |
| AWMS 15 | 15.0 | 14.0 | 16.0 |
| AWMS 16 | 16.0 | 15.0 | 17.0 |
Component Breakdown by Tower Size
| Tower Code | Ladder Frames 2m | Span Frames 2m | Guardrail 1m | H-Braces 2.5m | D-Braces 2.7m | Stabilizer 3m | Stabilizer 4.5m | Stabilizer 6m | 6” Castor Wheels | 8” Castor Wheels | Platform Fix | Platform Trapdoor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AWMS 2 | 1 | 1 | 0 | 4 | 2 | 0 | 0 | 0 | 4 | 0 | 1 | 1 |
| AWMS 3 | 1 | 1 | 2 | 6 | 2 | 0 | 0 | 0 | 4 | 0 | 1 | 1 |
| AWMS 4 | 2 | 2 | 0 | 6 | 4 | 0 | 0 | 0 | 4 | 0 | 1 | 1 |
| AWMS 5 | 2 | 2 | 2 | 6 | 6 | 4 | 0 | 0 | 0 | 4 | 1 | 1 |
| AWMS 6 | 3 | 3 | 0 | 8 | 8 | 4 | 0 | 0 | 0 | 4 | 1 | 1 |
| AWMS 7 | 3 | 3 | 2 | 8 | 10 | 4 | 0 | 0 | 0 | 4 | 1 | 1 |
| AWMS 8 | 4 | 4 | 0 | 8 | 12 | 0 | 4 | 0 | 0 | 4 | 1 | 1 |
| AWMS 9 | 4 | 4 | 2 | 10 | 14 | 0 | 4 | 0 | 0 | 4 | 1 | 1 |
| AWMS 10 | 5 | 5 | 0 | 10 | 16 | 0 | 4 | 0 | 0 | 4 | 1 | 1 |
| AWMS 11 | 5 | 5 | 2 | 10 | 18 | 0 | 4 | 0 | 0 | 4 | 1 | 1 |
| AWMS 12 | 6 | 6 | 0 | 12 | 20 | 0 | 0 | 4 | 0 | 4 | 1 | 1 |
| AWMS 13 | 6 | 6 | 2 | 12 | 22 | 0 | 0 | 4 | 0 | 4 | 1 | 1 |
| AWMS 14 | 7 | 7 | 0 | 12 | 24 | 0 | 0 | 4 | 0 | 4 | 1 | 1 |
| AWMS 15 | 7 | 7 | 2 | 14 | 26 | 0 | 0 | 4 | 0 | 4 | 1 | 1 |
| AWMS 16 | 8 | 8 | 0 | 14 | 28 | 0 | 0 | 4 | 0 | 4 | 1 | 1 |
Wide Scaffolding – What’s Included
- 2.0m Ladder Frames
- Guardrails (1.0m)

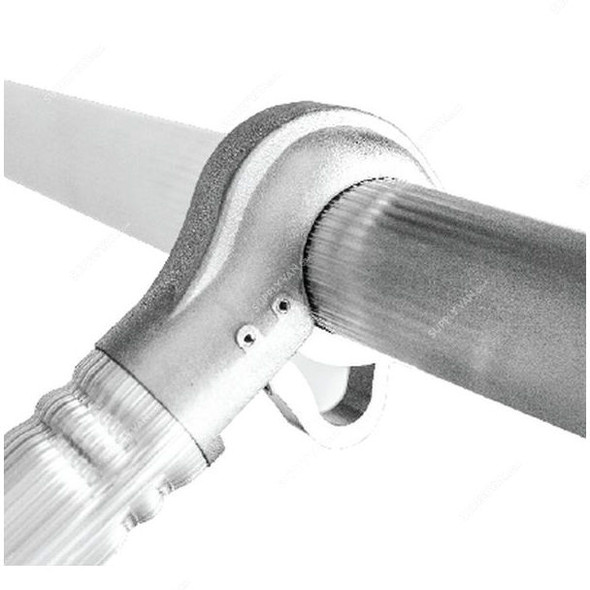

- H-Braces & D-Braces
- Span Frames
- Toe Boards

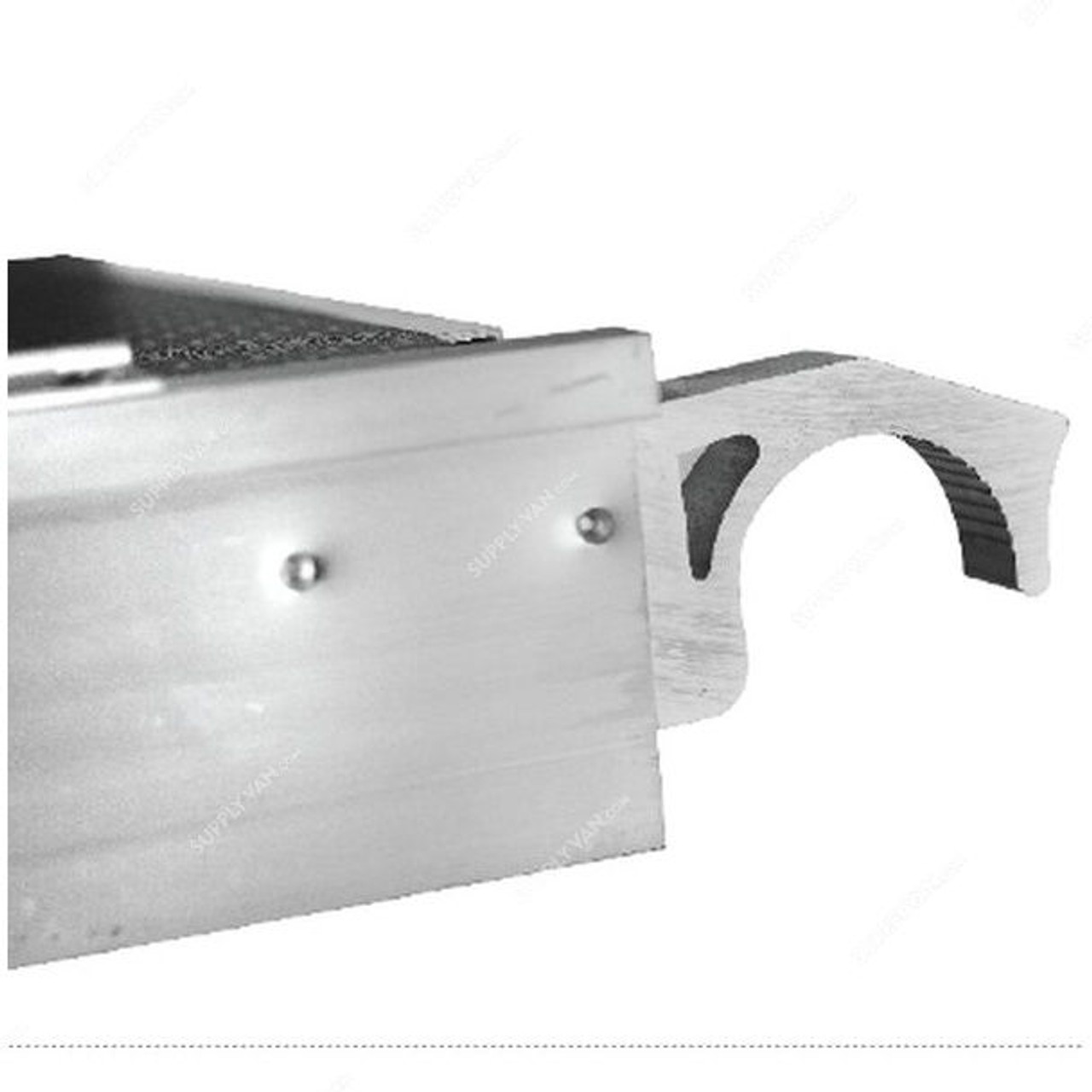

- Platforms (fixed/trapdoor options)
- Stabilizers (for 5m+ heights)
- Dual-brake caster wheels (6” or 8”)
